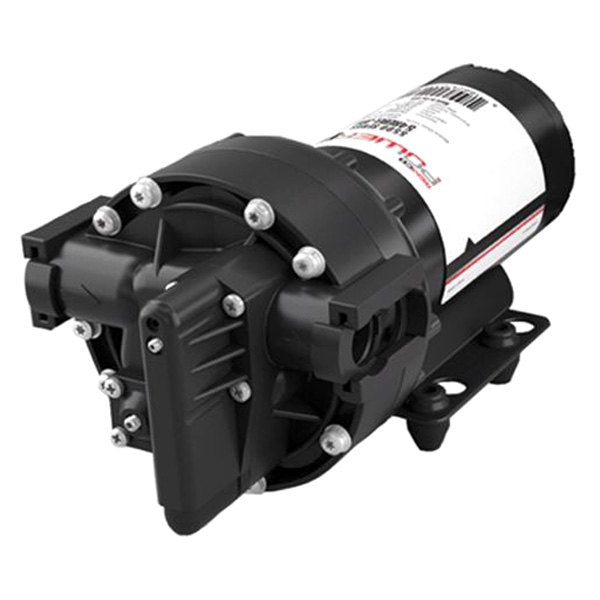

Remco 54REBEL-JRV PowerRV Rebel 12V Water Pump - 4GPM/60PSI
Delivery time
Ships out in 1-2 Business Days
THE POWER RV AQUAJET HAS VARIABLE SPEED, LOW NOISE AND STEADY PERFORMANCE.
Fresh Water Pump; PowerRV Rebel Series; Self-Priming (Up To 13 Foot); Dual Control; 4 Gallons Per Minute; 60 PSI On Demand Pressure Switch And Safety Bypass; 12 Volt DC; 3/4 Inch Quick Attach Ports; With Fittings; 8.89 Inch Length x 4.84 Inch Width x 4.6 Inch Height
Typical Applications
- RV and Coach water pumps
- Ag water pumps
- Transfer pumps
POWER RV AQUAJET OVERVIEW
With years of field proven reliability, it’s patented variable speed technology and five chamber design, the Remco Power RV AquaJet has earned a reputation as the finest and most advanced RV water system pump on the market.
Because of the powerful “just like home” performance offered by the Power RV Aquajet, leading RV manufacturers including Monaco Coach, Fleetwood, Airstream, Newmar, Foretravel and Country Coach were among the first to upgrade their high-end water systems by including our Aquajet RV pumps as standard equipment.
- Pump Operation: 12 Volt DC
- Flow Rate: 4 Gallon Per Minute
- Pressure Rating (PSI): 60 Pounds Per Square Inch
- Type: Self-Priming
- Inlet Port Type: 3/4 Inch Hose Barb
- Outlet Port Type: 3/4 Inch Hose Barb
- Length (IN): 8-7/8 Inch
- Width (IN): 4-7/8 Inch
- Height (IN): 4-5/8 Inch
- Material: Santoprene Diaphragm
- With Thermal Overload Protection: No
- With Pressure Switch: Yes
| Pump | |
|---|---|
| Type | 5 chamber diaphragm pump, self priming, capable of being run dry |
| Certifications | IAMPO NSF |
| Liquid Temperature | 140°F (60°C) Max. |
| Priming Capabilities | AES: 10 feet (3 m) ARV: 13 feet (4 m) |
| Max Pressure | 60-75 PSI (4.4-5.2 bar) |
| Inlet/Outlet Ports | Remco Quick Attach |
| Weight | 8 lbs (3.6 kg) |
| Motor | |
|---|---|
| Leads | 14 AWG, 12” long |
| Temperature Limits | If the heat sink rises above 185°F (85°C), an auto reset thermal protector will shut down the system, allowing the components to cool. |
| Item Number | GPM | Switch | PSI | Valves | Diaphragm | Ports | Connector | Fuse |
|---|---|---|---|---|---|---|---|---|
| 55AQUAJET-AES | 3.4 | Demand/Bypass | 60 | Viton | Santoprene | Quick Attach | 2-Pin | Yes |
| 55AQUAJET-ARV | 5.3 | Demand/Bypass | 60 | Viton | Santoprene | Quick Attach | 2-Pin | Yes |
| 55AQUAJET-OES | 3.4 | Demand/Bypass | 60 | Viton | Santoprene | Quick Attach | 2-Pin | No |
| 55AQUAJET-ORV | 5.3 | Demand/Bypass | 60 | Viton | Santoprene | Quick Attach | 2-Pin | No |
| Aquajet-AES | Aquajet-ARV | |||
|---|---|---|---|---|
| PSI | GPM | Amps | GPM | Amps |
| OPEN | 3.40 | 3.60 | 5.00 | 7.20 |
| 10 | 3.00 | 4.60 | 4.50 | 8.40 |
| 20 | 2.70 | 5.80 | 3.80 | 9.70 |
| 30 | 2.30 | 6.50 | 2.80 | 10.00 |
| 40 | 1.60 | 6.50 | 2.20 | 10.00 |
| 50 | 1.00 | 6.50 | 1.50 | 10.00 |
| 60 | 0.70 | 6.50 | 1.00 | 10.00 |
| 65 | 0.60 | 6.50 | 0.70 | 10.00 |
