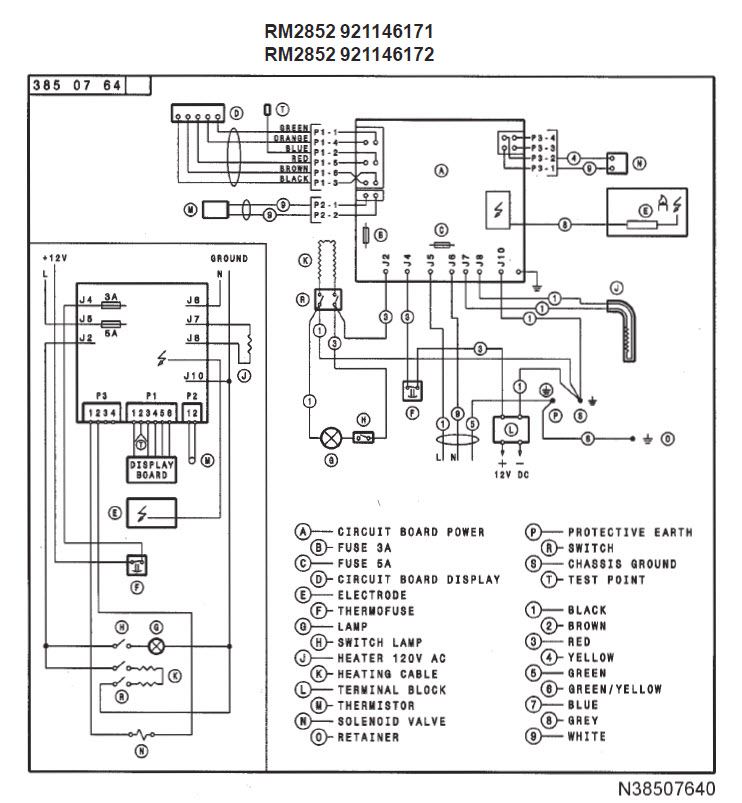

Dometic RM2852 Product ID #: 921146171 Parts Lists

                                       Parts Break Down:

                      Click The Part Number to search For Part







Reference #	Mfg Part Number	Qty	Product Description
NS	3108704382	1	GASKET SET (FREEZER & REFER DOOR GASKET INCLUDED)
1	2932561208	1	DOOR, FREEZER, BLACK - LH USE 2932561315
1	2932561315	1	DOOR ASM, FREEZER, LH FULL SHELF
2	2932562057	1	DOOR, REFER, BLACK - LH
3	2932740018	1	WASHER, COVERING
4	2931171066	1	BUSHING, HINGE-BLACK
5	2932578020	1	RACK, JUICE - WHITE USE 29326270255
6	2932588011	1	PIN, DOOR PANEL SUPPORT
8	2932093038	1	HANDLE, BLACK USE 3851174023
8	3851174023	1	HANDLE, BLACK USE 3851174031
8	3851174031	1	HANDLE, BLACK USE 38511740311
8	38511740311	1	DOOR HANDLE COMBO KIT, BLACK
9	3858000049	1	SCREW, PT 5X26-BLK
10	2932577014	1	SHELF, DOOR UPPER - WHITE USE 29326270255
10	29326270255	1	SHELF, WIRE FZR KIT- WHITE
11	2932576016	1	SHELF, DOOR - WHITE USE 29325760166
11	29325760166	1	DOOR SHELF COMBO KIT
12	2932575018	1	SHELF DOOR BOTTLE - WHITE USE 29325760166
12	29325760166	1	DOOR SHELF COMBO KIT
13	3850919022	1	DECORATION STRIP BLACK USE 38509191133   - A
13	38509191133	1	DECORATIVE STRIP BLACK - A
14	3850919063	1	DECORATION STRIP BLK - NLA USE 3850919113   - A
14	3850919113	1	S, DECO STRIP, BLK USE 38509191133   - A
14	38509191133	1	DECORATIVE STRIP BLACK - A
20	2932722008	1	DECAL, CAUTION
32	3850605025	1	COVER BLACK
35	3850781018	1	SPACER, F/ DOOR



Reference #	Mfg Part Number	Qty	Product Description
1	2932736081	1	COVER, BLACK
2	2932647015	1	HINGE PIN, UPPER USE 29326430300
3	2932644046	1	BRACKET, RIGHT - BLACK
4	2932643048	1	HINGE, BLACK USE 29326430300
5	2932643030	1	HINGE, BLACK , L/R USE 29326430300
5	29326430300	1	HARDWARE COMBO KIT- HINGES/HINGE PINS/BUSHINGS
6	2932648021	1	HINGE PIN, MIDDLE,BLK USE 29326430300
6	29326430300	1	HARDWARE COMBO KIT- HINGES/HINGE PINS/BUSHINGS
7	2002301006	1	PLUG,THERMISTOR,WHT USE 38510590422
7	38510590422	1	THERMISTER KIT W/PLUG AND HOLDER
11	2932649011	1	PIN, LOWER HINGE USE 29326430300
11	29326430300	1	HARDWARE COMBO KIT- HINGES/HINGE PINS/BUSHINGS
18	2932771021	1	BOARD, CONTROL PANEL BLACK USE 2932771039
18	2932771039	1	BOARD, CONTROL PANEL - NLA
19	3858002052	1	SCREW RXS B6 X 13
21	2932641034	1	FRONT, BLACK
29	2930740077	1	COVER, BLACK USE 29326430300
29	29326430300	1	HARDWARE COMBO KIT- HINGES/HINGE PINS/BUSHINGS
30	2932776004	1	DECAL USE 29327760044
31	2932779008	1	DECAL, SINGLE SWITCH
32	3850585039	1	PLUG, BLACK
33	3858039096	1	SCREW, ZINC-PLTD MRX M5 X 14 - NLA
34	2932855014	1	CATCH LEVER USE 2932855030
35	2932660018	1	RAIL
36	2932456029	1	BRACKET, THERMISTOR
37	2932690049	1	COVER, BASE - BLACK USE 2932690130
37	2932690130	1	KICKPLATE, W/FM,BLACK
39	3858010022	1	WASHER, BLACK XINC USE 29326430300
48	3858004058	1	SCREW, MRX 4X4 FZ USE 29326430300
50	3850774013	1	DECAL, COLDER/WARMER USE 29327760044
50	29327760044	1	LABEL PKG - NLA
66	2932680016	1	SWITCH USE 2932680024
66	2932680024	1	SWITCH
107	3858010113	1	WASHER, ZINC-PLTD BRB 6.4X12.5 - NLA
108	3858009057	1	NUT, ML6 M6-BLK USE 29326430300
108	29326430300	1	HARDWARE COMBO KIT- HINGES/HINGE PINS/BUSHINGS
531	3858039047	1	SCREW, MRX M4 X 10 (ZINC)- NLA
NS	2932750124	1	DOOR REVERSING KIT LH-RH, BLACK USE 293275012
NS	293275012	1	DOOR REVERSING KIT LH TO RH BLK



Reference #	Mfg Part Number	Qty	Product Description
1	2932728013	1	COVER, FREEZER
3	2932630011	1	FINS, COOLING - NLA
4	2801051018	1	SCREW
4	3858036019	1	SCREW, ZINC-PLATED, KFXS B10 X 38 - NLA
5	2932624014	1	TRAY, DRIP USE 3316102.9019
7	2932115013	1	PLUG, DRAIN HOSE USE 3316102.9019
7	3316102.902	1	DRAIN HOSE/PLUG/TRAY ASSY
8	2932635010	1	CUP, DRAIN USE 3316102.9019
9	2932749019	1	HOSE, DRAIN USE 2932749159
9	2932749159	1	KIT, SVC HOSE, DRAINAGE 54.1IN
15	2931117176	1	SHELF, PLASTIC, CLEAR USE 3850324025
16	3850324025	1	SHELF, WIRE, BOTTOM USE 38503240177
17	3850324017	1	SHELF, WIRE USE 38503240177
17	38503240177	1	WIRE SHELF COMBO KIT 6/8
18	3850325014	1	SHELF, WIRE WHITE,, 19 3/4 X 10-1/2 USE 3314698000
18	3314698000	1	SHELF, WIRE MILK WHITE USE 38503240177
18	38503240177	1	WIRE SHELF COMBO KIT 6/8
19	3850324033	1	SHELF, WIRE
20	2932627025	1	SHELF, WIRE - NLA- USE 29326270255
20	29326270255	1	SHELF, WIRE FZR KIT- WHITE
21	2932102011	1	CLIP,SHELF WIRE-WHT
22	2932101013	1	PLUG, SHELF WIRE-WHT USE 3316450.9019
23	2932103019	1	PLUG,SHELF WIRE-WHT USE 3316450.9019
23	3316450.902	1	SHELF CLIP/PLUG KIT
25	2932621010	1	CRISPER - WHITE USE 29326210100
25	29326210100	1	CRISPER BIN, WHT, COMBO 6/8
27	2932523018	1	LAMP SOCKET USE 2932520014
27	2932520014	1	INTERIOR LIGHT ASSEMBLY
32	2932108018	1	TERMINAL,LIGHT HOUSING - NLA
40	2932106012	1	COVER, LAMP USE 2932520014
40	2932520014	1	INTERIOR LIGHT ASSEMBLY
41	2932665017	1	SWITCH USE 29326650177
41	29326650177	1	DOOR LIGHT SWITCH, ASM 6/8FT
43	2007290006	1	BULB, G4 12VDC - 10 WATT



Reference #	Mfg Part Number	Qty	Product Description
1	140207044	1	NUT, JAM F/ORIFICE USE 3850730569
10	2932603018	1	HOUSING, BURNER USE 3850730569
10	3850730569	1	GAS VALVE/BURNER ASM
17	3858039039	1	SCREW, MRX M4 X 8 (ZINC) - NLA
18	3858039047	1	SCREW, MRX M4 X 10 (ZINC)- NLA
19	3858002144	1	SCREW, ZINC-PLTD RXS B6 X 9.5 - NLA
20	2932615012	1	VALVE, SOLENOID USE 3850730395
21	3858002151	1	SCREW, RXS B6 X 13 (ZINC)
22	3858005014	1	SCREW, RXK B6 X 9.5 (ZINC)
25	3858010071	1	WASHER, 12.5 X 18.5 X 1 SEE NOTES FOR USE#S
25	3850730569	1	GAS VALVE/BURNER ASM
32	2930697079	1	BURNER, COMPLETE
33	2932781012	1	ELECTRODE WITH LEAD WIRE
38	2007419217	1	BURNER JET #58 - NLA SEE NOTES FOR USE #
45	3850712013	1	MODULE, POWER USE 3316348.900
45	3316348.9	1	POWER CONTROL -HERCULES
45	3315577.9	1	S,FUSE,GLS,5A(5.2*20MM)
47	2954542037	1	CONDUCTOR, PCB USE 2954542094
47	2954542094	1	WIRE, IGNITION CONTROL INTEGRATED
48	2931863035	1	THERMISTER WITH LEAD. 44IN USE 3851210025
48	3851210025	1	THERMISTER WITH 44IN LEAD
49	2954539017	1	CONDUCTOR, SOLENOID VALVE
53	2932661016	1	COVER, BURNER HOUSING - NLA
55	3850730569	1	GAS VALVE/BURNER ASM
55	2932662014	1	BRKT, GAS VALVE, ANTI-ROTATE SEE NOTES FOR USE#S
68	173768037	1	HEATER, 325W, 115V. USE 3850644422
68	3850644422	1	HEATER, 325W-120VAC
70	2007457001	1	WASHER, ORIFICE, 0.5MM SEE NOTES FOR USE#S
70	3850730569	1	GAS VALVE/BURNER ASM
84	3858022019	1	BLOCK, TERMINAL
85	3858002185	1	SCREW, RXS B6 X 19 (ZINC)
91	3858002177	1	SCREW, ZINC-PLTD RXS B6X19
113	2932733005	1	LABEL,GROUNDING- NLA USE 29327760044
113	29327760044	1	LABEL PKG - NLA
115	2932667047	1	BAFFLE, FLUE
120	2002699094	1	POWER CORD AC
150	3850337019	1	PLATE, POWER MODULE
151	561014010	1	STRAIN RELIEF
152	3850377015	1	MTG BRKT, SOLENOID VALVE USE 3850730569
153	3858018017	1	SCREW, ZINC PLATED (M5 X 25) - NLA
250	3858004033	1	SCREW, MRX M4X16 ZINC PLATED
251	3858011012	1	WASHER, LOCK 4.3X8
252	3858009016	1	NUT, HEX M4X3.2 ZINC-PLATED - NLA
253	3858028024	1	NUT, LOCK M4 ZINC-PLATED



Reference #	Mfg Part Number	Qty	Product Description
100	2934806106	1	COOLING UNIT, USE 3313470.008
100	3313470.008	1	COOLING UNIT 806/826
101	173228008	1	CAP, FILLING USE 173228008
101	173228008	1	CAP, FILLING - NLA
102	2933557007	1	COVER, HEATER ACCESS,POS - NLA
103	3858020013	1	SCREW, ZINC (DK4.8 X 16P)
103	3858068012	1	SCREW, DK 4.8X16P - NLA
140	3850582002	1	LABEL USE 29327760044
140	29327760044	1	LABEL PKG - NLA
141	3850583000	1	LABEL
