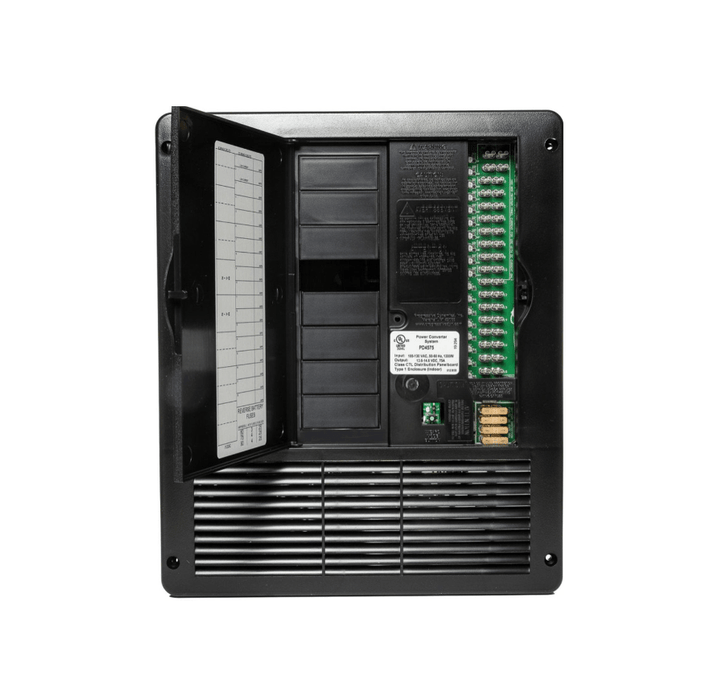

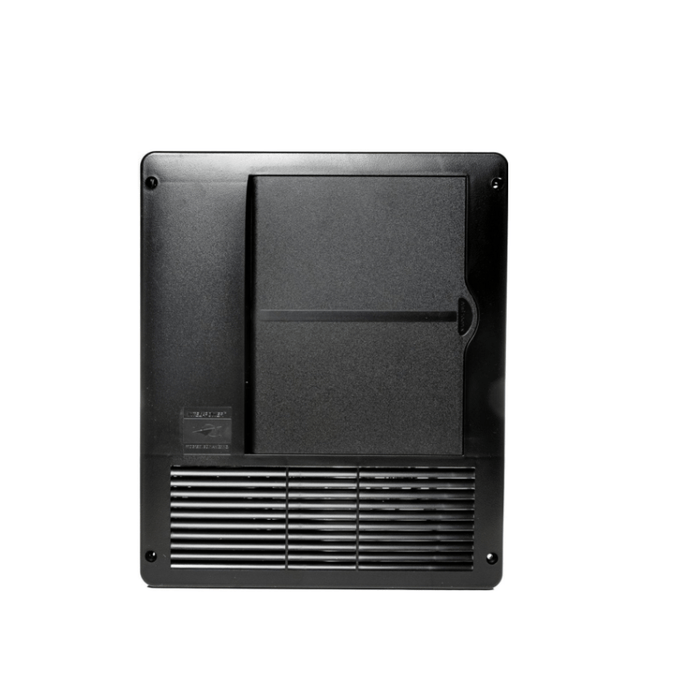

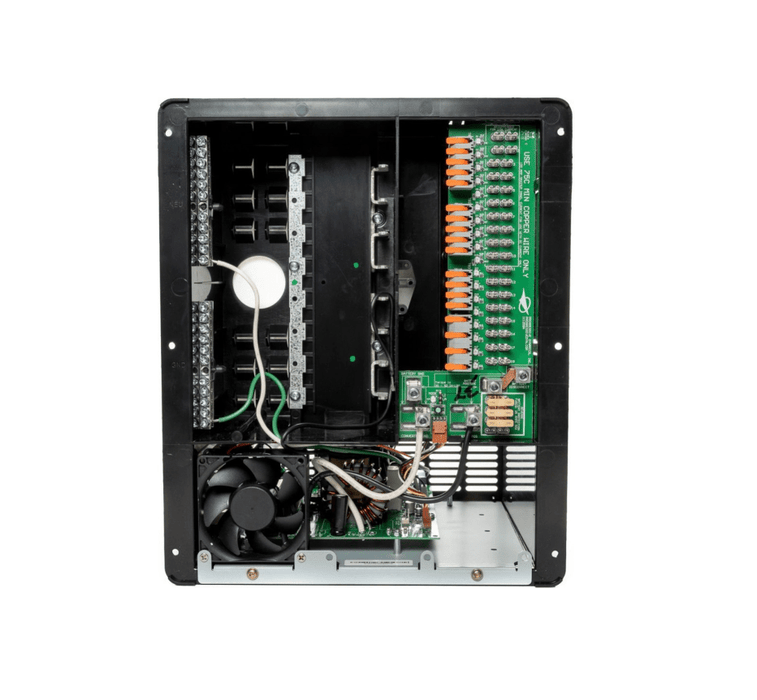

Progressive Dynamics PD4575AV Inteli-Power - Power Converter 75 Amp
Power Converter; Inteli-Power ® 4500 Series; 240 Volt Converter/ Charger; 1300 Continuous Watts Maximum Input; 75 Amp Maximum DC Output; 80 Percent Efficiency; With Reverse Battery/ Thermal Protection; 7.8 Inch Length x 11.85 Inch Width x 14-1/8 Inch Height; With AC Distribution Panel/ DC Distribution Panel, Two Wired 30 Amps Fuses, Four Wired 30 Amps Fuses/ With Built-In Charge Wizard Microprocessor Controlled Four Stage Charger/ Optional LED Indicators And DC Disconnect Tie-In
Converts: 105-130 Volt AC To 13.6-14.6 Volt DC
Continuous Output Power: 1300 Watt
Ampere Rating: 75 Amp
Efficiency: 80 Percent
Length: 7-3/4 Inch
Width: 11.85 Inch
Height: 14-1/8 Inch
Remote On/Off Capable: No
With USB Port: No
With Volt/Watt Meter: No
With Reverse Battery Protection: Yes
With Thermal Protection: Yes
With Built-In Charger: Yes
With Fuse: Yes
- 4500 Series: Reverse Battery Protection; Electronic Current Limiting; High And Low AC Input Protection
- PD4500 Series: Intelligent, Variable Speed, Cooling Fan; Automatic Thermal Protection; Press Open Door For Easy Access To Circuit Breakers
- PD4500 Series: Front Access To Large Wiring Compartment
- Inteli-Power AC: Attractive Lightweight Panel Design Made From Black Impact-Resistant High Temperature Polymers
- Inteli-Power DC: Optional 12 Branch Fuse Holders With 2 To 30 Ampere Circuits Or 18 Branch Fuse Holders With 4-30 Ampere Circuits
- Inteli-Power DC: Optional L.E.D. Indicators Identify Which Fuse Is Blown; Converter Or Charger Section Is Accessible From The Front
- Inteli-Power DC: Easy Access Reverse Battery Protection Fuses
- PD4500: Optional DC Ground Bus Can Be User Installed In The DC Wiring Compartment
- Inteli-Power AC: 12 Built-In Push And Lock Strain Relief Wiring Connectors Make Installation Quick And Easy And Saves Over 50 Percent On Installation Costs
- Limited 2 Year Warranty
This unit replaces many, some of which being:
- Progressive Dynamics PD4575LIK18LS8
- WFCO WF-8965 and WF-8975
