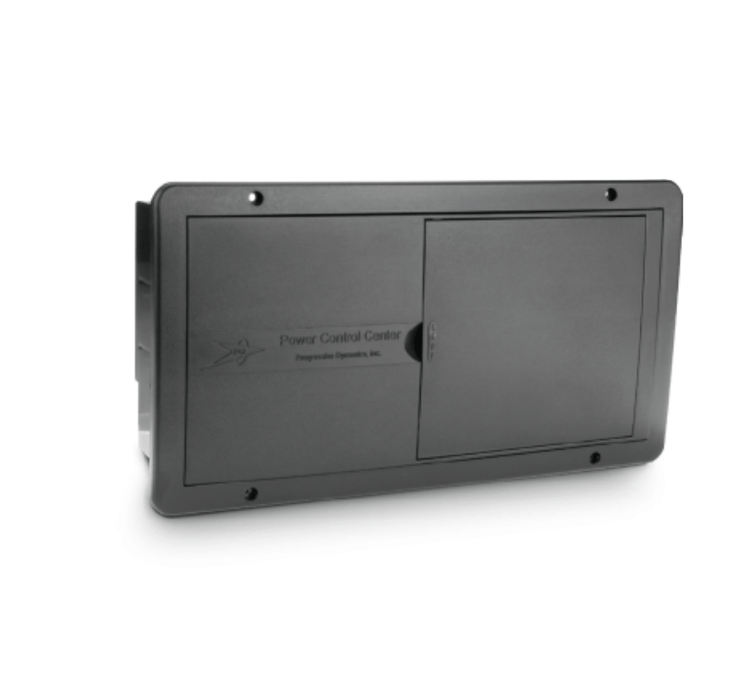

Progressive Dynamics PD50K3Q2GP Power Distribution Box 30 Amp
Power Distribution Box; 5000 Series; Used As AC/ DC Power Distribution Center; 30 Amp/ 120 Volt AC; Black; Plastic; 4 Inch Length x 13.4 Inch Width x 7.1 Inch Height
*Box/Panel Only, No Converter*
We've designed this attractive 5000 Series 30 Ampere AC/DC Power Distribution Panel to fit your electrical installation cost requirements. PLUS, it's loaded with features you won't find in many other panels costing substantially more than this competitively priced unit.
- Recommended Use: AC/ DC Power Distribution Center
- Voltage Rating: 120 Volts AC
- Power Rating: 30 Ampere
- Length (IN): 4 Inch
- Width (IN): 13.4 Inch
- Height (IN): 7.1 Inch
- Color: Black
- Material: Plastic
Features & Benefits
- Provisions for 30 Amp AC main and up to 9 AC branch circuits.

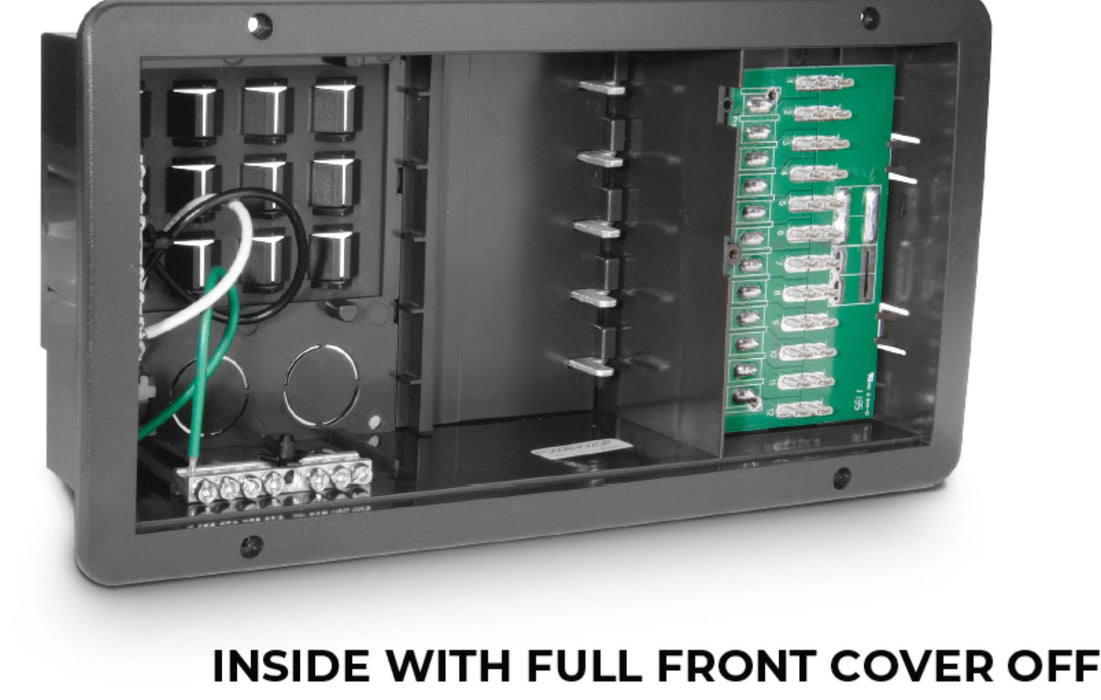

- Generous wiring space for easy installation — also reduces costly wiring errors.
- Built-in wire strain relief for each branch circuit. Saves over 50% on installation costs.
- Space for up to 12 fused DC branch circuits for 12 Volt lighting and DC appliance circuits.
- Accepts rated fuses up to 30 Amp — eliminates auxiliary fuse panels for slide-outs and leveling jacks saving you even more money
- Attractive Light Weight Panel Design Made From Black Or Brown Impact-Resistant High Temperature Polymers

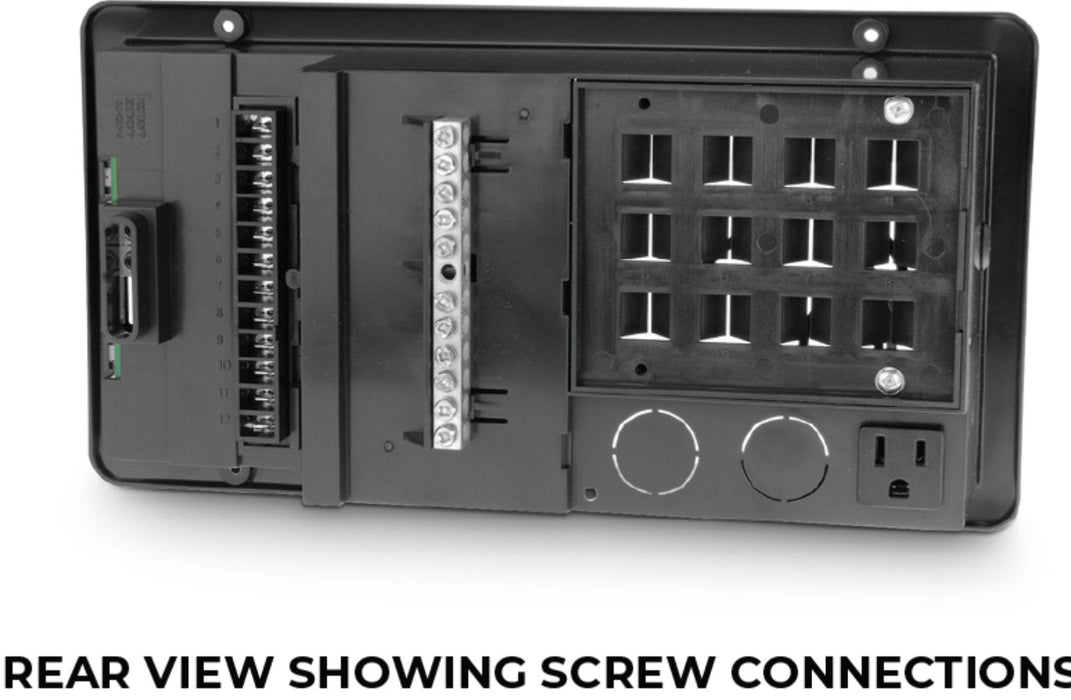

- All 12 VDC branch circuit connections located on outside rear of panel — reducing installation time and costly errors.
- High Current 12 Volt DC Input Power Terminal Strip Provides Easy Connection Point For Battery And Converter
- Limited 1 Year Warranty
